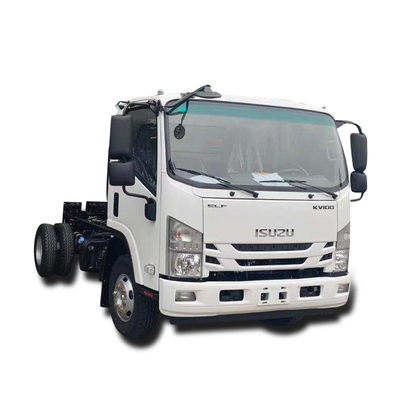

Chassis Model: |
QL1100A8KAY |
|
|
Vehicle Parameters |
Overall Dimension(L x W x H) |
7870×2490×3550mm (subject to final design) |
|
Curb Weight: |
4900Kg |
|
|
Loading Weight: |
5100Kg |
|
|
GVW: |
10000Kg |
|
|
Wheelbase: |
3815mm |
|
|
Drive Type: |
4x2 |
|
|
Engine |
Engine Model: |
4HK1-TC51 |
|
Engine Power: |
139(kw) |
|
|
Displacement: |
5193(ml) |
|
|
Horsepower: |
190HP |
|
|
Transmission |
Transmission: |
MLD-6Q |
|
Forword Gear: |
6 Speed Gear |
|
|
Reverse Gear: |
1 Speed Gear |
|
|
Seats |
Front Seat: |
3 |
|
Chassis |
Front Track: |
1680mm |
|
Rear Track: |
1650mm |
|
|
Axle Loads: |
Double Axles |
|
|
Tires: |
7(including spare tire) |
|
|
Tire Model: |
8.25R20 |
|
|
Configuration: |
1 |
Power Steering |
|
2 |
AC |
|
|
3 |
Retro-reflective Marking |
|
|
4 |
ABS |
|
|
5 |
Free Maintenance Battery |
|
|
6 |
Radial Tire |
|
|
7 |
Air brake |
|
|
Pressure/Vacuum tank
|
Material |
St52 |
|
Capacity |
3000L |
|
|
Wall thickness |
6mm |
|
|
Head thickness |
6mm |
|
|
Design pressure |
full vacuum |
|
|
Working pressure |
-0.98bar |
|
|
Stiffening ring |
Cold bend U-sectional external stiffening rings |
|
|
Tipping cylinder |
Front tipping cylinder for tank unloading at 45 degree |
|
|
Safety support |
safety valve for easy working under a tipped tank |
|
|
Liquid level |
mounted at the rear of tank body. Plugs at the top and bottom of indicator for removing sludge |
|
|
Over pressure device |
over pressure valve at the top of tank |
|
|
Vent Valve |
mounted to control the vacuum inside the tank |
|
|
Discharge Gutter |
At the rear of the tank in order to keep the rear of the vehicle clean |
|
|
Rear cover |
Operation |
hydraulic operation |
|
Safety |
Hydraulic valve automatic check |
|
|
Hinges |
Heavy duty, adjustable hinges |
|
|
Locking mechanism |
Hydraulic operated clamp |
|
|
Seal |
Positive seal with rubber seal in neoprene |
|
|
Inlet valve |
check valve ND100mm |
|
|
Outlet valve |
check valve ND100mm |
|
|
Vacuum pump |
Type |
water-cooled liquid ring vacuum pumps |
|
Model |
2BE1-153 |
|
|
Air flow |
800 m³/hr |
|
|
Max Vacuum |
98% |
|
|
Power requirement |
20 kW |
|
|
Speed |
Max 1500 rpm |
|
|
Drive line |
engaged and disengaged in cab |
|
|
Pump protection |
venting ball valve inside tank body |
|
|
filter |
||
|
automatic vacuum sniffer valve |
||
|
Cooling water tank |
Capacity |
1.000 L |
|
Materia |
St52 |
|
|
Wall thickness |
4 mm |
|
|
Type |
Cylindrical tank, mounted just behind the cabin |
|
|
Manhole |
1 Off manhole, diam. 450mm |
|
